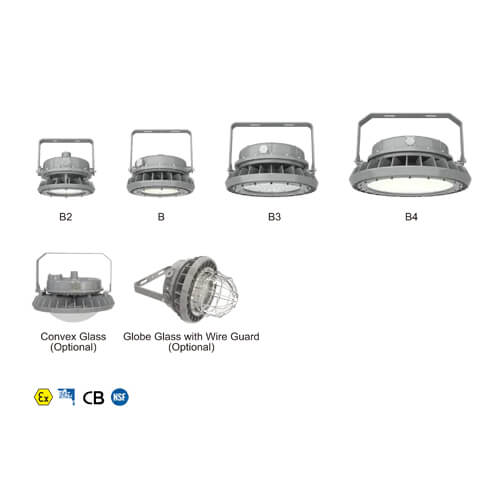

VEANS Hazardous Location LED Luminaire B Series (Zone 1, 2, 21, 22)

VEANS Hazardous Location LED Luminaire B Series (Zone 1, 2, 21, 22)

Product Description
The B Series LED luminaire is the ideal choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.

Categories: ,

Features

  • 0-10V dimming
  • High luminous efficacy – Up to 140 lumens per watt
  • Compact and robust structure, excellent reliability
  • Various installation ways for different applications
  • Great impact resistance with IK08/IK10 certified

Compliance

ATEX Standard:

II 2 G Ex eb mb IIC T6…T4 Gb
II 2 D Ex tb IIIC T80°C…T100°C Db

IECEx Standard:

  • Ex eb mb IIC T6…T4 Gb
  • Ex tb IIIC T80°C…T100°C Db
  • Zone 1&2, Zone 21&22
  • CB (Ref. Certif. No.: DE 2-038462-M1)
  • NSF
  • Ta. -40°C~+65°C
  • 1000 hours salt spray
  • IP66 (according to IEC 60079-0)/IP67
  • IK08 (glass cover)
  • IK10 (with wire guard)
  • 5G vibration

Application

  • Power Plants
  • Heavy Industrials Storage Facility
  • Paper mills
  • Wastewater Treatment Plants
  • Loading Docks Platforms
  • Offshore Environments
  • Chemical Processing Facility
  • Petrochemical Processing Facility
  • Metallurgical Industry
  • Coal Mine
  • Food and Alcohol industry

Technical Parameter

  •  Electrical

*Cable Entries: For side and top, 3/4 NPT is standard. If others are required, customer needs to indicate when placing an order.

  • Electrical

*Cable Entries: For side and top, 3/4 NPT is standard. If others are required, customer needs to indicate when placing an order.

  • Electrical

*Cable Entries: For side and top, 3/4 NPT is standard. If others are required, customer needs to indicate when placing an order.

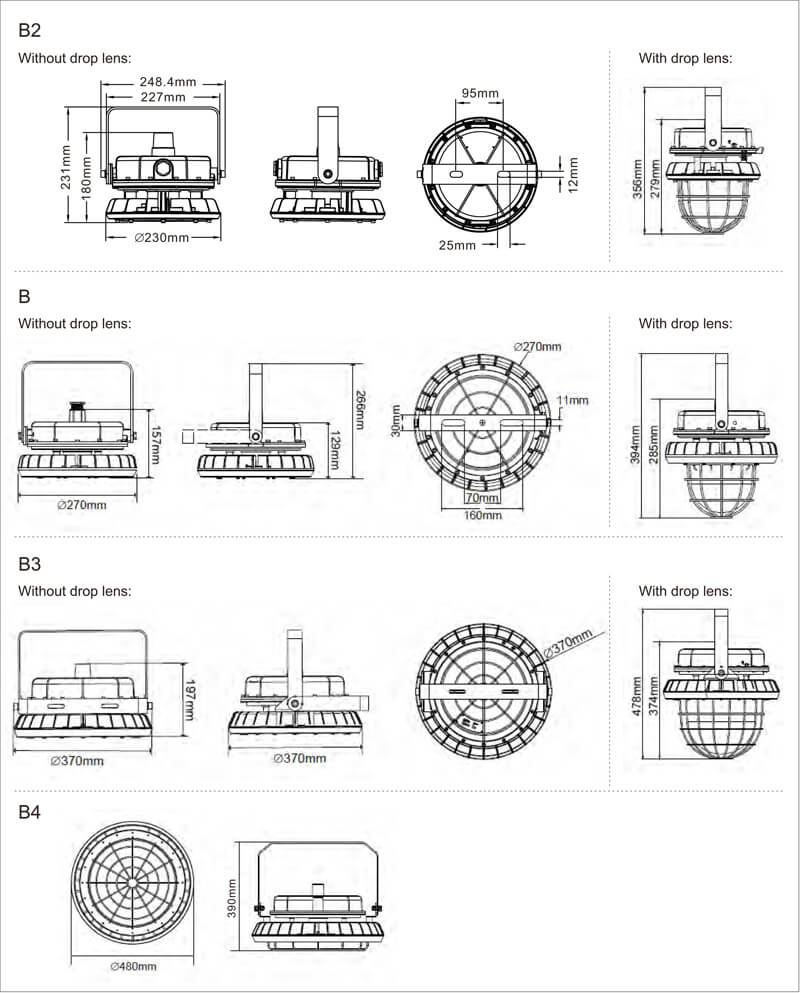

Product Dimensions

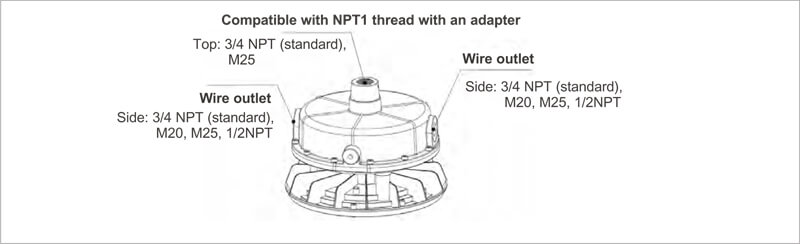

Cable Entries

  • Packing Information

*Please note that net weight and gross weight may be subject to change because of actual configuration.

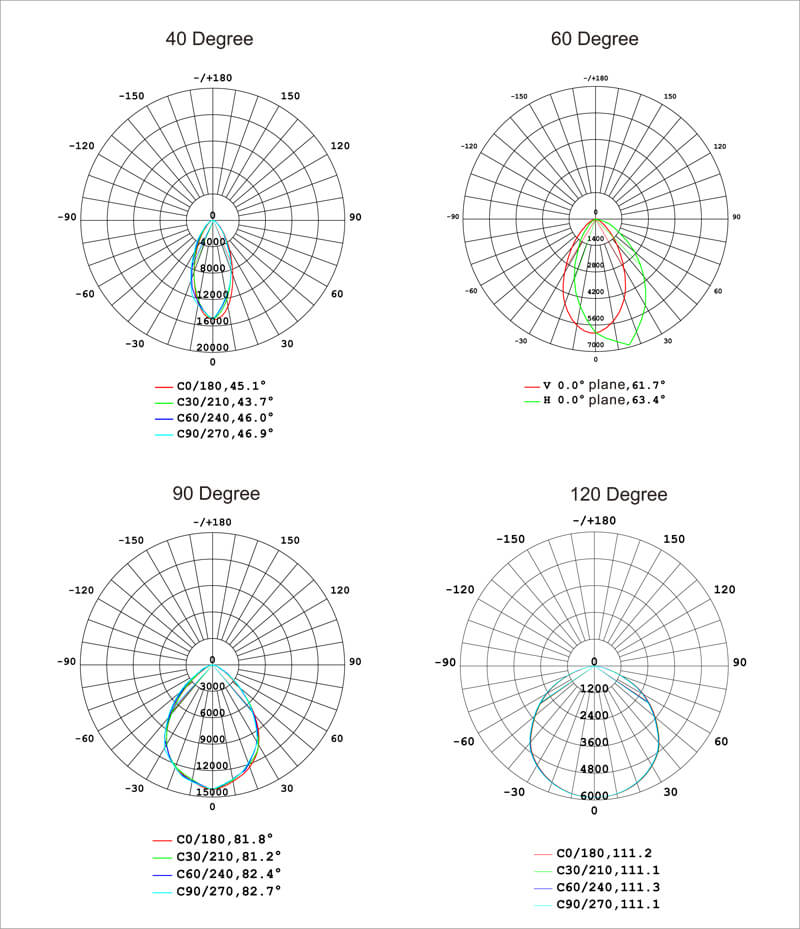

Photometric
